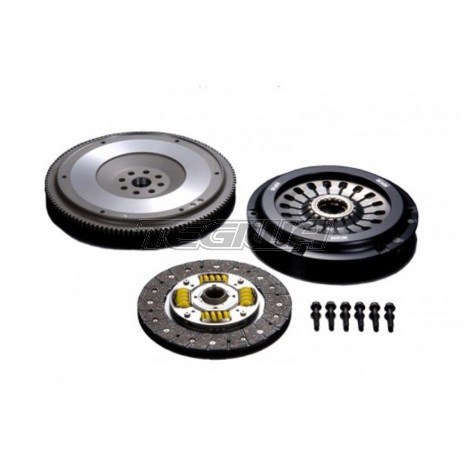

HKS Clutch LA Clutch Type Single plate Honda S2000

LA Clutch is now available for Honda S2000 (AP1 / AP2).
Based on the combination with the GTS7040, the output is estimated to 280kw (380ps), and the capable torque is 450N・m (46kgf・m). Use the LA Clutch for S2000 in a wide variety of driving conditions.
HKS LA Clutch provides remarkable capability and advantages as a high performance single clutch. Clutch performance is enhanced with appropriate balance between its capable torque, light weight, and controllability. No uncomfortable feeling after installing this clutch to NA vehicles.

BALANCE OF PEDAL EFFORT & PRESSURE

Enhanced pressure bonding for remarkable high capability. Tight clutch operation is maintained at the same time.

φ215 "MG COMPOSITE DISC"

"MG Composite Disc" is composite of Metal fiber and Glass fiber. This unique disc has ideal performance of friction coefficient , anti-heat and strength.

For street driving, clutch engagement is very smooth. For circuit driving, it engages quickly without slippage.

The low inertia disc protects synchronizer and accepts quick gear change.

STRAP DRIVE MECHANISM

Clutch cover has Strap Drive Mechanism that provides reliable clutch disconnection.

QUICK RESPONSE

The optimized lightweight flywheel enables the smooth and balanced clutch engagement which stimulates quick response and acceleration. Lightweight drilled type flywheel reduces inertia.

NOISE CANCELLATION DRIVE TRANS PROTECTION

Disc Damper eliminates the uncomfortable gear noise from transmission. It absorbs the shock torque and protects the drive train.

Note

Allowable Range is the range of engine torque that the clutch can be used except intentional overheating of clutch.

Conditional Allowable Range is the range that clutch slippage may occur by rough operation, kick back from tire and distortion of parts etc.

Over the limitation is the range that the clutch slippage may occur during clutch engagement at high rpm.

Physical limitation is the point that slippage may occur during acceleration.

Comparison of LA clutch stock clutch

AP1

AP2

Stock

LA Clutch

Comparison

Stock

LA Clutch

Comparison

Pedal pressure (N)*1

167

196

117%

147

206

140%

Flywheel weight (kg)

6.3

4.2

67%

9.6

4.2

44%

Clutch disc weight (kg)

1.36

1.36

100%

1.36

1.36

100%

KIT weight (kg)

12.3

10.2

83%

16.0

10.2

64%

*1 Pedal effort was measured during actual driving. There may be a difference depending on a vehicle's specification.

Repair parts

Product

Vehicle

Model

Engine Model

Year

Code no.

Price (w/o tax)

Remark

Clutch cover

S2000

AP1/AP2

F20C/F22C

99/04-09/09

26999-AH003

Clutch disc

26999-AH004

Bolt set (cover)

26999-AK004

Vehicle

Model

Engine

Model Year

Mission Type

Form

Flywheel Weight

Clutch Type

Code No.

Price

Remarks

S2000

AP1

F20C

99/04-05/10

Stock 6 speed

PULL

4.2kg

SINGLE

26010-AH002
