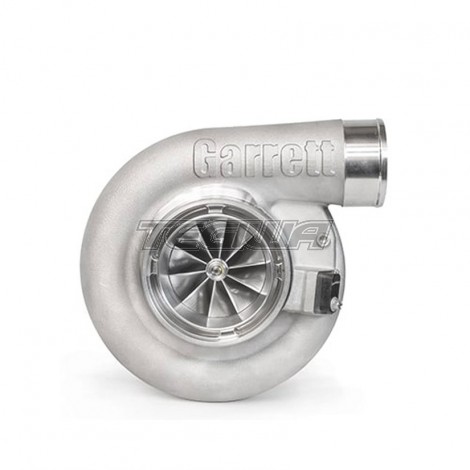

Garrett G-Series G40-1150 Super Core No Turbine Housing

Garrett G-Series G40-1150 Supercore, with 71mm Inducer Compressor Wheel
HP: 500-1150 Engine Displacement: 2.0L-6.0L
Compressor: Inducer size 71mm, Exducer size 88mm, Trim 65 A/R 0.80
Turbine: Inducer size 77mm, Exducer 70mm, Trim84
• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• 71mm compressor inducer size
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with T4 twin scroll inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models
G40 Turbine Housing Kit Options
Part Number
A/R
Inlet
Outlet
Wategate
Divided
757707-0027
0.85
V-Band
V-Band
Free Float
N
757707-0028
0.95
V-Band
V-Band
Free Float
N
757707-0029
1.06
V-Band
V-Band
Free Float
N
757707-0030
1.19
V-Band
V-Band
Free Float
N
757707-0032
0.85
T4
T4
Free Float
Y
757707-0033
0.95
T4
T4
Free Float
Y
757707-0034
1.06
T4
T4
Free Float
Y
757707-0035
1.19
T4
T4
Free Float
Y
Super core and turbine kit sold individually.
