AIM MX UTV GPS Digital Dash with Belt Sensor

More Views

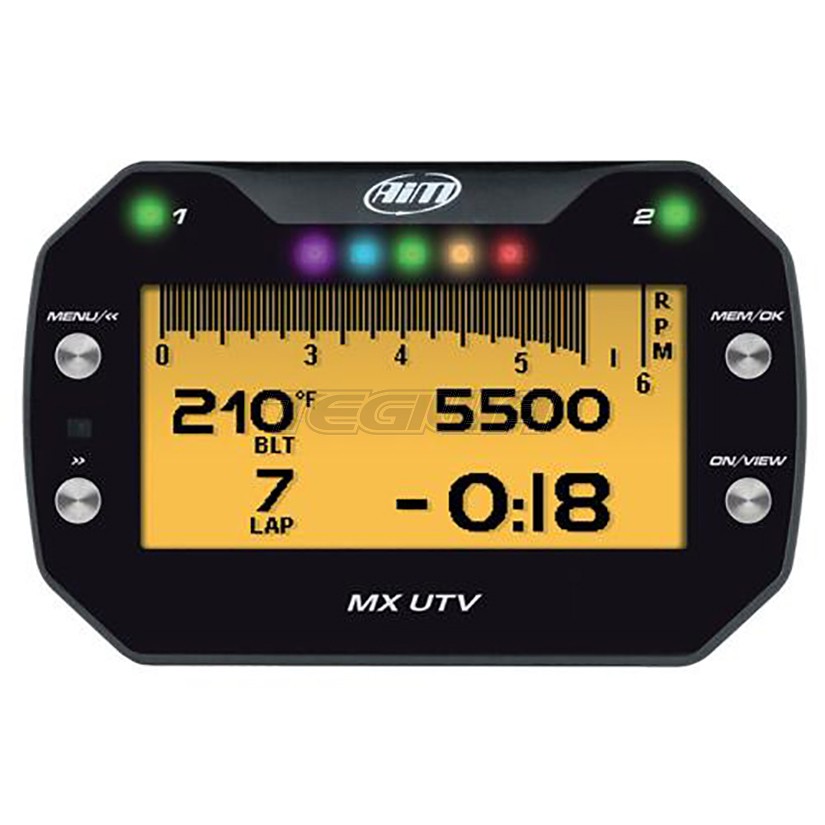

AIM MX UTV GPS Digital Dash with Belt Sensor

SKU: AIM-MXUTV

Manufacturer: AIM

AIM

Quick Overview

The MX UTV Dash Logger is designed for UTV vehicles. It displays engine ECU data and transmission belt temperature via infrared sensor included in kit.
£500.00 Excl. Tax £600.00 Incl. Tax

ETA: 2-5 Working Days

Details

The MX UTV Dash Logger is designed for UTV vehicles. It displays engine ECU data and transmission belt temperature via infrared sensor included in kit.

Aim MX UTV GPS Digital Dash with Belt Sensor

MX UTV shows:

  • channels coming from the vehicle ECU
  • one temperature value that can be belt or, according to the ECU of your vehicle, oil temperature or oil pressure.
  • lap time, with the precision of 1/100 sec and all parameters coming from GPS and Glonass constellations: speed, position, lateral acceleration and time of the day.

The GPS receiver has been tuned for our sport and can thereby stand all lateral and longitudinal accelerations, direction changes and vibrations without problems, always giving a perfect result ten times per second (10 Hz). The MX UTV uses both GPS and Glonass data to compute lap times. In case the track in which you are racing is included in the MX UTV database, it automatically recognizes it, gets the start/finish line and calculates lap times with high precision.

All these data are stored in a huge 4GB internal memory, that can record your data for thousands of hours. You can download the data recorded on your PC using WiFi.

MX UTV is Powered by the Vehicle Battery

Your MX UTV can only be powered by the vehicle battery and is to be installed using the four silent blocks already mounted rear of it.

MX UTV is Powered by the Vehicle Battery

MX UTV is Expandable

You can connect it via CAN Bus to:

  • SmartyCam HD
  • LCU-One CAN Lambda controller

You can connect it via CAN Bus

Wide LCD Display

The wide LCD display has a freely configurable RGB back light and a light sensor (1) that automatically switches on the back light with low light conditions.

The two RGB alarm LEDs (2) can be switched on with seven different colours, different blinking patterns and custom temperatures thresholds.

Five configurable shift lights (3) help you choosing the best up-shift moment. A very helpful alternative is to use them to indicate the real-time gap between the current lap and the best lap of the session.

Wide LCD Display

Wide LCD Display

MX UTV Back Light Control and Colour

You can set the back light as “ON”, “OFF” or “AUTO”. In this last case the light sensor placed left on the front of your MX UTV switches on/off the back light according to the ambient light level. In this page you can also change the back light colour choosing among eight different colours.

MX UTV Back Light Control and Colour

MX UTV Back Light Control and Colour

Race Studio

Race Studio is the heart of your Aim MX UTV managing all your racing activities.

Configuration

With Race Studio you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Race Studio

Analysis

With Race Studio you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

Race Studio

More Info

Supplier Stock Level
Stock 0.0000
Supplier OOS Lead Time
Supplier Lead Time
Manufacturer AIM
Fitment See Title
Colour N/A
Note No
