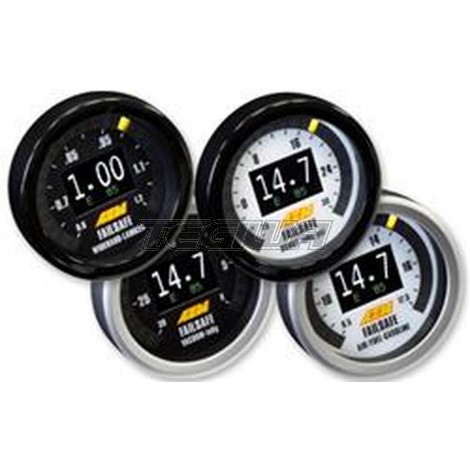

AEM Digital Flex Fuel Wideband Failsafe Gauge NO FF SENSOR. Incl. Bosch 4.2LSU sensor, Black/Silver Bezels, Black/White AFR Faceplates, Black/White Boost Faceplates, Black Vacuum Faceplate & Black Lambda Faceplate
The Flex Fuel Wideband FAILSAFE Gauge (PN 30-4910 w/o Ethanol Content Sensor) displays Air/Fuel Ratio, Boost/Vacuum and Ethanol Content, and can actively protect your engine from damage if it runs lean or excessively rich. IF YOU NEED AN ETHANOL CONTENT SENSOR WITH YOUR FLEX FUEL WIDEBAND FAILSAFE GAUGE, PLEASE CLICK ON PN 30-4911.
The 52mm (2-1/16”) Flex Fuel Wideband FAILSAFE Gauge includes a Bosch 4.2LSU AFR wideband sensor for monitoring and feedback of AFR, and an on-board boost sensor to read vacuum or boost pressures up to 29 PSI. It is available with or without an ethanol content sensor for users who may already have one (PN 30-4910 no sensor, PN 30-4911 includes sensor). An internal data logger is included to capture approximately 2.5 hours of data on a loop, and includes two analog outputs for logging AFR, Boost/Vacuum and Flex Fuel content, and any triggered alarms. The gauge also includes a low side output for triggering a failsafe strategy in the event AFR falls outside of the operating window (see example strategies, below).
This product is a must have for all tuned performance engines who use Ethanol-based fuels like E85, either forced induction or naturally aspirated. Any high performance vehicle owners who want an accurate AFR tuning tool with integrated logging and the ability save an engine from catastrophic failure will want the Flex Fuel Wideband FAILSAFE device.
WHAT IT DOES
After the engine is tuned and a safe operating window of AFR is established, the Flex Fuel Wideband FAILSAFE Gauge continuously monitors AFR/Lambda and Boost/Vacuum to make sure that AFRs do not fall out of a user defined operating window. If it detects an out of range AFR reading, the gauge triggers a low side output (ground signal with a 1.5 amp draw max) that can save your engine from catastrophic damage (see example strategies, below).
VIBRANT Organic LED DISPLAY
AEM’s Flex Fuel Wideband FAILSAFE Gauge’s feature a vibrant Organic LED (OLED) center readout that can be user-programmed to display AFR/Lambda and Ethanol Content, Boost/Vacuum and Ethanol Content, or a single input of either AFR/Lambda or Boost/Vacuum. The 24 sweeping outer LED ‘needles’ can be programmed to display AFR or Boost/Vacuum, and corresponding faceplates are included for matching the inputs to the proper display layout (see Specs tab or Images tab for faceplates). A silver bezel is also included to further customize the look of the gauge face.
EASY TO SET UP
The gauge’s intuitive software makes set up and configuring the low side output a snap. Setting AFR boundary limits, creating a user-adjustable time delay strategy to prevent false alarms, customizing the gauge lighting to flash and alert the driver if an alarm is triggered and configuring the LED displays are all performed using the software via a USB connection.
ON-BOARD DATA LOGGER
The Flex Fuel Wideband FAILSAFE Gauge’s on-board data logger stores approximately 2.5 hours of data (20 Hz per parameter) of AFR, Boost/Vacuum, Flex Fuel content and Alarm events. Data logs can be downloaded for viewing in FREE AEMdata software, which includes video encoding to overlay data onto your videos. Users with AEMnet-equipped (CAN bus) devices can daisy chain the Flex Fuel Wideband FAILSAFE gauge using the AEMnet connection (adapter sold separately). Non AEMnet-equipped devices can communicate with the gauge using the CAN 2.0B spec protocol. An analog output for O2 feedback is also provided for 3rd party engine management systems, or logging with a stand-alone 3rd party data logger.
EXAMPLE ENGINE PROTECTION STRATEGIES...
More Info
| Manufacturer | AEM |
|---|---|
| Fitment | No |
| Colour | N/A |
| Note | No |
- Be the first to review this product
You may also be interested in

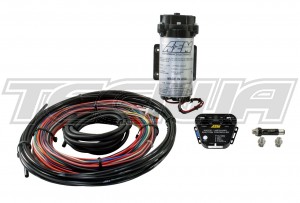

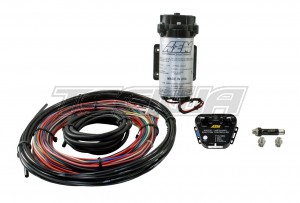

AEM V2 Water/Methanol Injection Kit Multi Input Controller - 1 Gallon Reservoir
